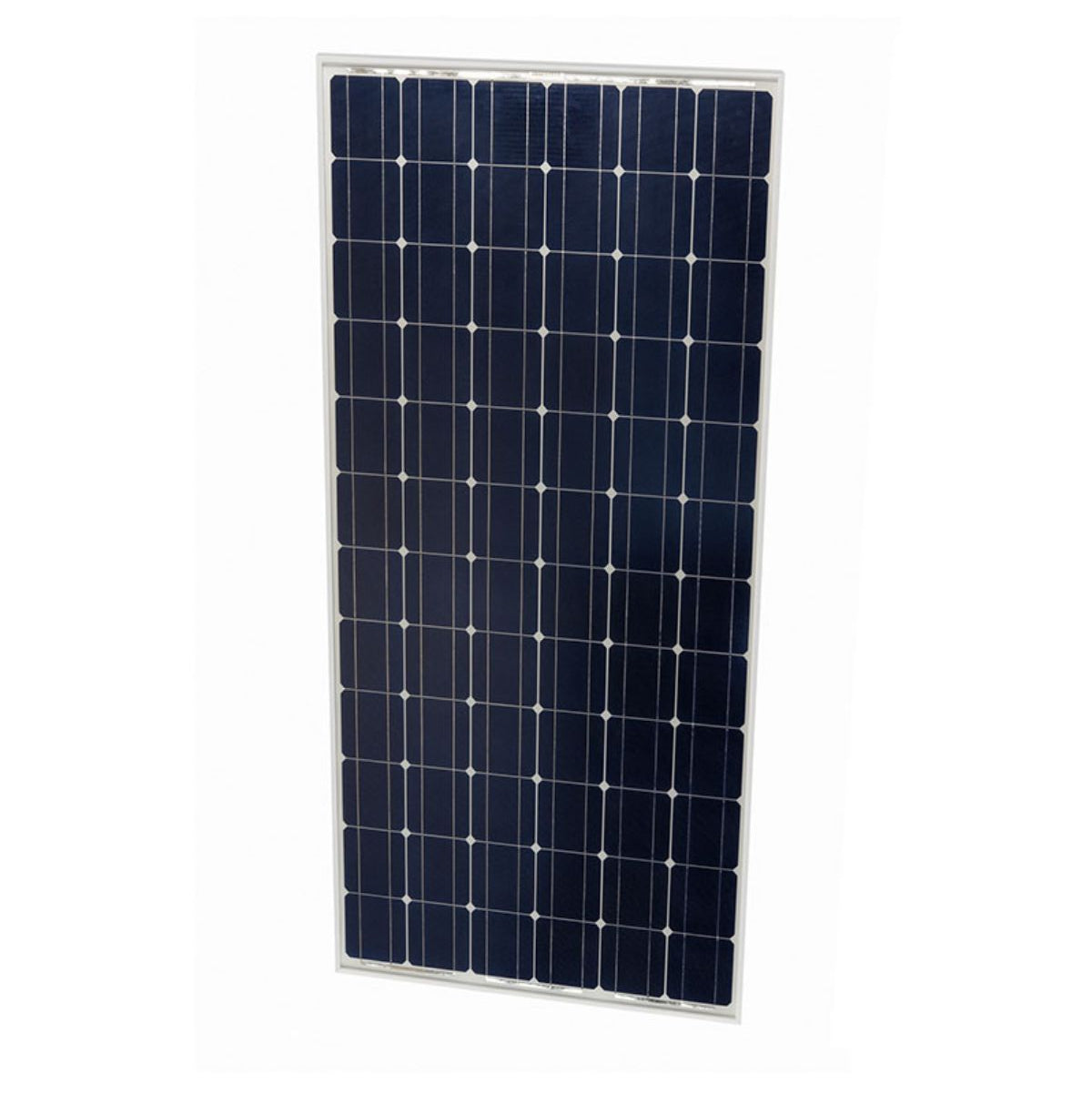

Victron 215W Fixed Mono Solar Panel

Introducing the Victron 215W-24V Monocrystalline Solar Panel, model 042152402—a high-performance solar panel engineered for efficiency, durability, and ease of use. This panel offers outstanding low-light performance and a low voltage-temperature coefficient, making it a reliable power source in all weather conditions, even in high temperatures. Crafted with quality materials, including a robust anodized aluminum frame and high-transmission tempered glass, this panel is designed to last and perform. Installation is hassle-free with pre-wired MC4 connectors, and the panel is backed by a solid 25-year power output warranty, making it ideal for both off-grid systems and renewable energy enhancements.

• Low Voltage-Temperature Coefficient enhances high-temperature performance.
• Exceptional Low-Light Performance and high sensitivity to light across the entire solar spectrum.
• 25-Year Limited Warranty on power output and performance.
• 5-Year Limited Warranty on materials and workmanship.
• Sealed, Waterproof, Multifunctional Junction Box ensures a high level of safety.
• High-Performance Bypass Diodes minimize power loss caused by shading.
• Advanced EVA Encapsulation System with a triple-layer back sheet meets stringent safety standards for high-voltage operation.
• Sturdy Anodized Aluminium Frame allows easy roof-mounting with various standard systems.
• High-Transmission Tempered Glass enhances stiffness and impact resistance.
• Pre-Wired Quick-Connect System with MC4 connectors.

Panel Specifications:

• Model: SPM042152402 215W-24V Mono
• Height: 1580mm
• Width: 705mm
• Thickness: 35mm
• Weight: 14.5 kg
• Nominal Power (Pmpp): 215W
• Max Power Voltage (Vmpp): 28.3V
• Max Power Current (Impp): 7.6A
• Open Circuit Voltage (Voc): 34.1V
• Short Circuit Current (Isc): 8.1A
• Cell Type: Monocrystalline
• Number of Cells in Series: 72
• Max System Voltage: 1000V
• Temperature Coefficient of MPP (% per °C): -0.45%
• Temperature Coefficient of Voc (% per °C): -0.35%
• Temperature Coefficient of Isc (% per °C): +0.04%
• Temperature Range: -40°C to +85°C
• Surface Maximum Load Capacity: 240 kg/m²
• Allowable Hail Load: 23 m/s, 7.53 g
• Cable Length: 900 mm with MC4 connectors
