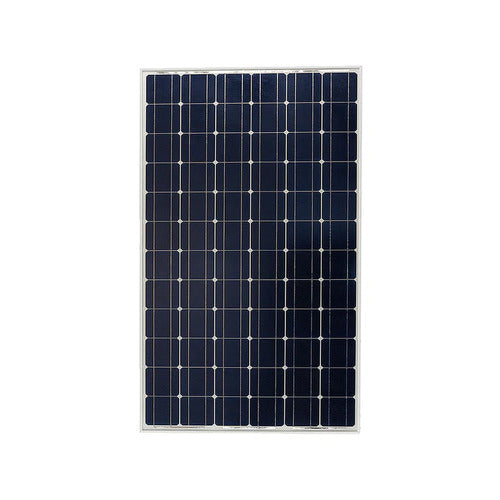

Victron 140W Fixed Mono Solar Panel

Introducing the Victron 140W Monocrystalline Solar Panel, designed for high efficiency and superior performance in any environment. With a low voltage-temperature coefficient, this panel delivers reliable power even in high temperatures. Exceptional low-light performance ensures power generation throughout the day, while a sturdy, anodized aluminum frame and high-transmission tempered glass provide enhanced durability and impact resistance. Installation is quick and secure with pre-wired MC4 connectors, making it easy to integrate into various setups. The panel also comes with a 25-year power output warranty and a 5-year warranty on materials and workmanship, offering long-term reliability.

• Low Voltage-Temperature Coefficient enhances high-temperature operation.
• Exceptional Low-Light Performance and high sensitivity across the entire solar spectrum.
• 25-Year Limited Warranty on power output and performance.
• 5-Year Limited Warranty on materials and workmanship.
• Sealed, Waterproof, Multifunctional Junction Box for high-level safety.
• High-Performance Bypass Diodes minimize power drop caused by shading.
• Advanced EVA Encapsulation System with a triple-layer back sheet for high-voltage safety.
• Sturdy Anodized Aluminum Frame for versatile roof mounting.
• High-Transmission Tempered Glass for added stiffness and impact resistance.
• Pre-Wired Quick-Connect System with MC4 (PV-ST01) connectors.

Specifications:

• Nominal Power (Pmpp): 140W
• Max Power Voltage (Vmpp): 19.0V
• Max Power Current (Impp): 7.37A
• Open Circuit Voltage (Voc): 22.6V
• Short Circuit Current (Isc): 7.94A
• Cell Type: Monocrystalline
• Number of Cells in Series: 36
• Max System Voltage: 1000V
• Temperature Range: -40°C to +85°C
• Surface Maximum Load Capacity: 200 kg/m²
• Allowable Hail Load: 23 m/s, 7.53 g
• Frame: Aluminium
• Dimensions: 1250 x 668 x 30 mm
