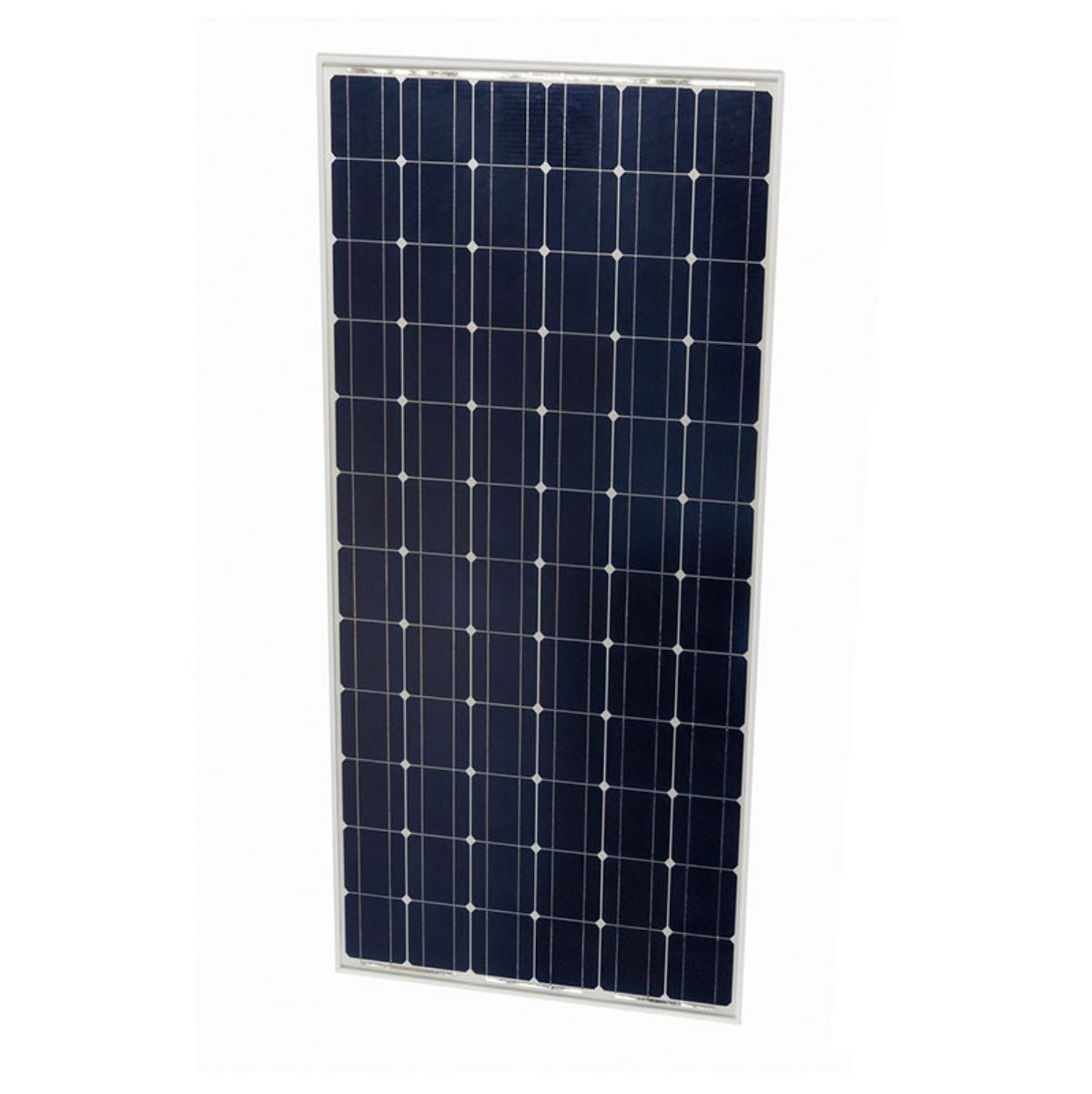

Victron 90W Fixed Poly Solar Panel

Introducing the Victron 90W Polycrystalline Solar Panel (model 040901200), designed to provide reliable and efficient power generation even in diverse conditions. With a low voltage-temperature coefficient, this panel performs well in high-temperature settings, while its sensitivity to low light ensures consistent energy production throughout the day. Built with a robust anodized aluminum frame and high-transmission tempered glass, this panel is durable and resilient. Pre-wired with MC4 connectors for quick installation, it’s backed by a 25-year power output warranty and a 5-year warranty on materials, making it a dependable long-term choice.

• Low Voltage-Temperature Coefficient enhances high-temperature operation.
• Exceptional Low-Light Performance with high sensitivity across the full solar spectrum.
• 25-Year Limited Warranty on power output and performance.
• 5-Year Limited Warranty on materials and workmanship.
• Sealed, Waterproof, Multifunctional Junction Box ensures a high level of safety.
• High-Performance Bypass Diodes minimize power loss caused by shading.
• Advanced EVA Encapsulation System with a triple-layer back sheet for high-voltage safety.
• Sturdy Anodized Aluminium Frame allows easy roof-mounting with standard systems.
• High-Transmission Tempered Glass for enhanced stiffness and impact resistance.
• Pre-Wired Quick-Connect System with MC4 (PV-ST01) connectors.

Panel Specifications:

• Height: 1030 mm
• Length: 668 mm
• Width: 30 mm
• Weight: 8 kg
• Nominal Power (Pmpp): 90W
• Max Power Voltage (Vmpp): 19.0V
• Max Power Current (Impp): 4.74A
• Open Circuit Voltage (Voc): 23.32V
• Short Circuit Current (Isc): 5.06A
• Cell Type: Polycrystalline
• Number of Cells in Series: 36
• Max System Voltage: 1000V
• Temperature Coefficient of MPP (% per °C): -0.45%
• Temperature Coefficient of Voc (% per °C): -0.35%
• Temperature Coefficient of Isc (% per °C): +0.04%
• Temperature Range: -40°C to +85°C
• Surface Maximum Load Capacity: 200 kg/m²
• Allowable Hail Load: 23 m/s, 7.53 g
• Cable Length: 900 mm with MC4 connectors
