Macca's Offroad 12V 20A Battery DC-DC Charger suit lithium

Macca's 12V 20A DC-DC suit Lithium Battery

The Macca's Offroad 12V 20A DC-DC Charger is designed to charge 12V lithium (LiFePO₄) batteries from a vehicle's alternator or other 12V power sources. It offers several features tailored for efficient and safe charging in various conditions.

Key Features:

Input Voltage Range: Supports inputs from 12.8V to 36V, accommodating a variety of power sources.

Output Voltage and Current: Provides a regulated output of 14.6V at 20A, suitable for charging 12V lithium batteries.

Durability: Features a robust die-cast aluminium shell and is rated IP67 fully

Temperature Rating: Rated to operate in temperatures up to 85°C, making it suitable for under-bonnet installations.

Safety Protections: Includes over-voltage, over-current, short circuit, and over-temperature protections, along with fuse protection on both input and output.

Design Standards: Built to CE/RoHS design standards and incorporates high-quality NCC & NICHICON Japanese internal capacitors.

Service Life: Designed for a service life of up to 100,000 hours, indicating long-term reliability.

Warranty: Comes with a 3-year warranty, providing assurance of its quality and durability.

Considerations:

Battery Compatibility: Specifically designed for lithium (LiFePO₄) batteries; may not be suitable for other battery types without proper verification.

Charging Capacity: With a 20A output, it's best suited for smaller battery systems or applications with moderate power requirements.

Installation is easy:

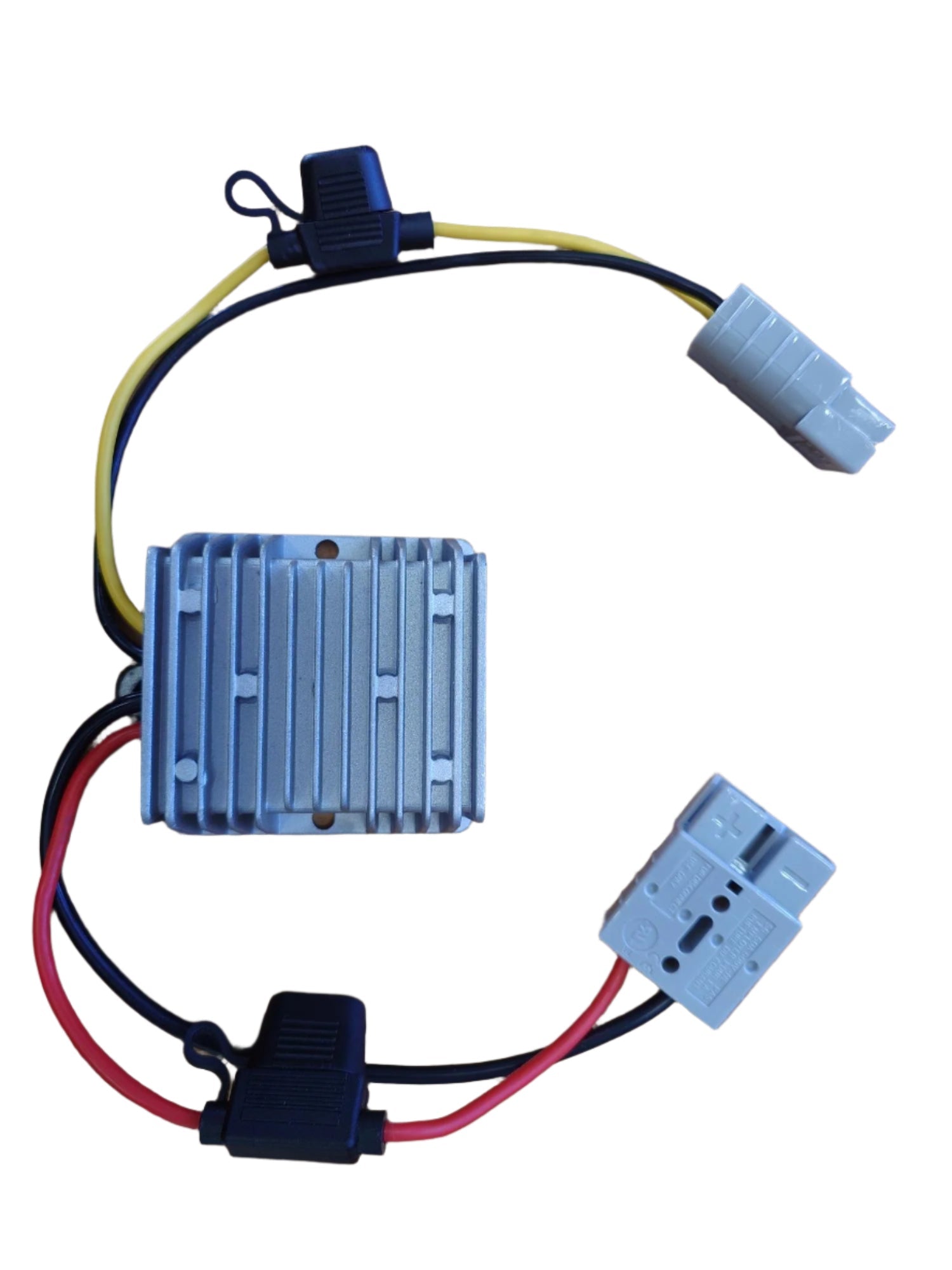

Simply connect the red and black wired Anderson to your source power and the yellow and black wired Anderson to your Auxiliary Battery. No configuration required.

*** For permanent installs, it is recommended to use a switch or a relay to connect and disconnect the Maccas 20a DCDC to ensure proper operation.
